Easy-to-fit horizontal and vertical extension accessories designed for use with the 1201 and 1201XL Telescopic Underfloor Ventilators. Multiple units can be used to achieve greater depths and heights.
1203 Horizontal Front Extension Sleeve - Fits between the airbrick and upper front opening of the telescopic underfloor ventilator to accommodate external walls of more than 102.5mm thickness, up to a maximum of 215mm.

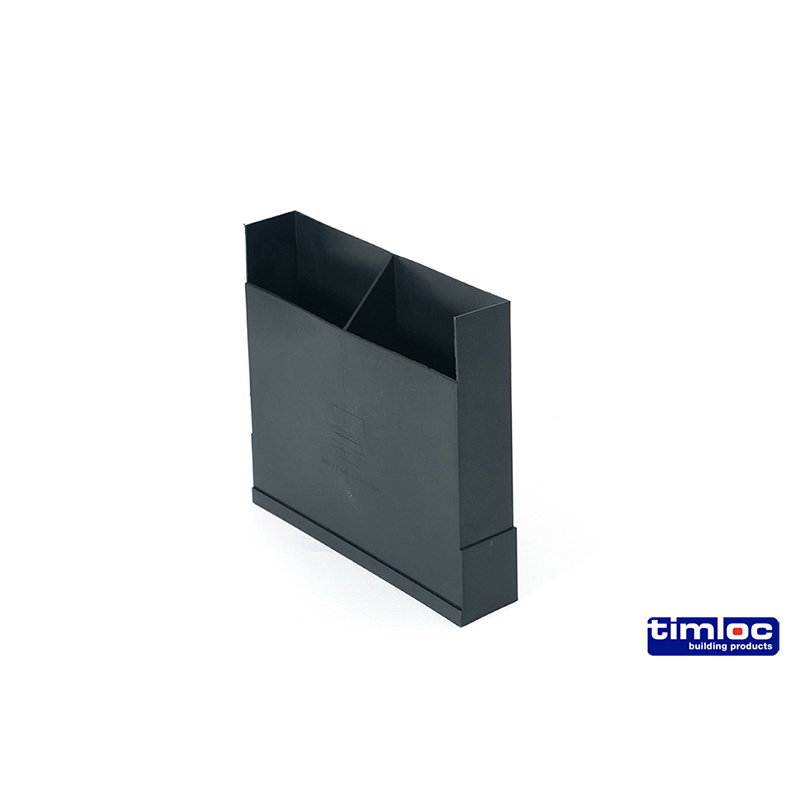

1204 Vertical Extension Sleeve - Fits between the upper and lower parts of the telescopic underfloor ventilator to accommodate a vertical step of 6 to 7 brick courses.
1205 Duct Adaptor - Fits on to the lower rear opening of the telescopic underfloor ventilator to allow a standard 110mm external diameter plastic underground drainage pipe to be connected via a coupling connection.

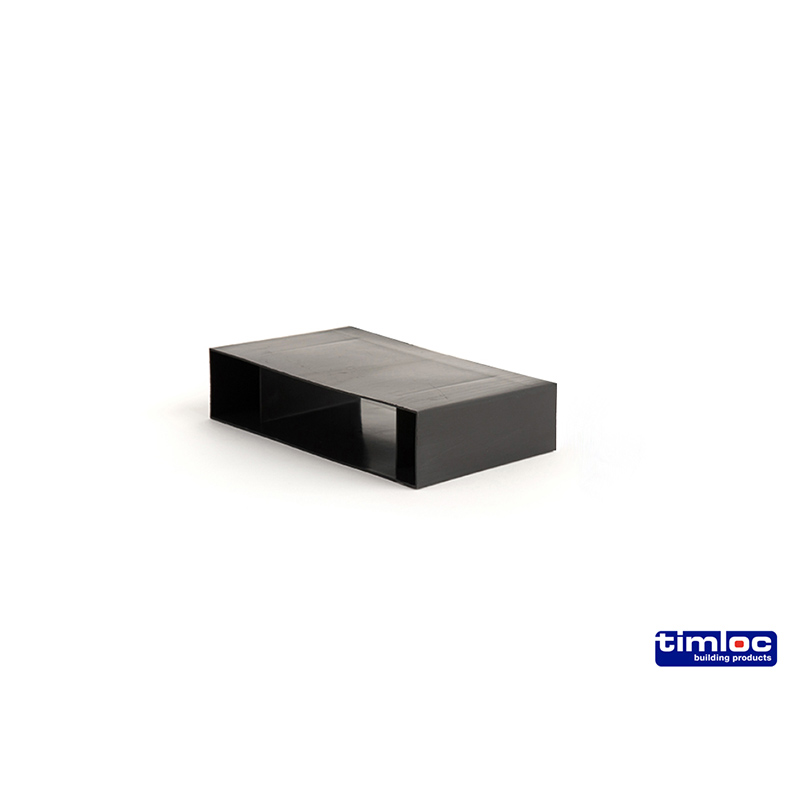

1206 Horizontal Rear Extension Sleeve - Fits into the lower rear opening of the telescopic underfloor ventilator to accommodate cavity widths between 50-150mm – or internal walls of more than 100mm thickness, up to a maximum of 200mm.
Product code : 83Q13
