PFC Corofil Universal Wrap CUPW

PFC Corofil Universal Pipe Wrap CUPW is an intumescent strip which is installed around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions where they have been provided with apertures for the penetration of combustible pipe services.

Universal Pipe Wrap is manufactured as a roll of intumescent 25m x 40mm x 2mm. It has a removable paper on one face, covering an adhesive strip which adheres to each layer as it is wrapped around the pipe. Each roll is supplied in an individual box.

  • One product for multiple applications
  • Fits pipe sizes from 32 – 250mm diameter

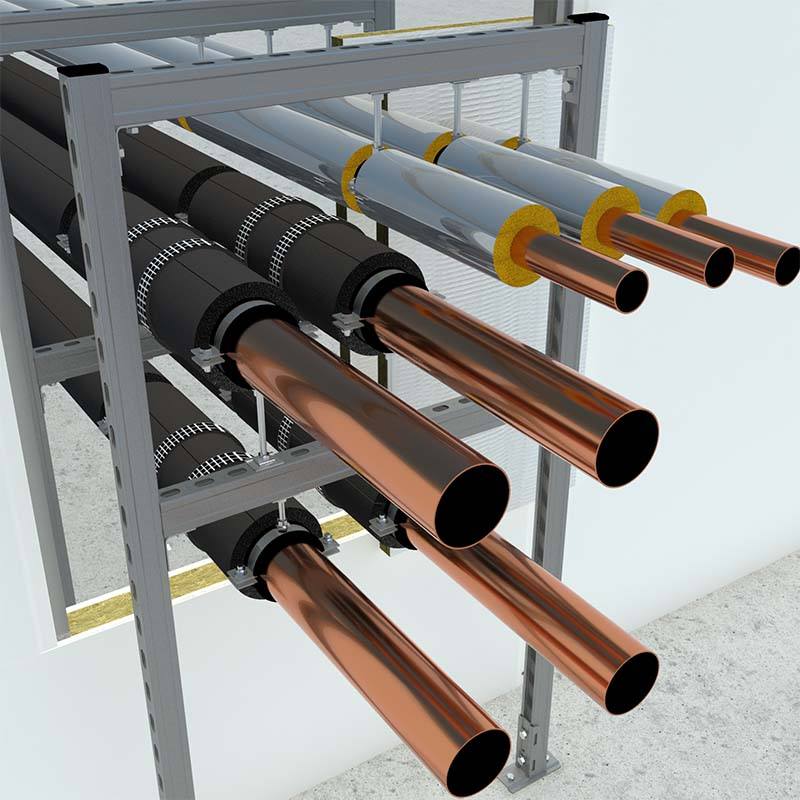

  • Suitable for use on combustible and metallic pipes, with insulation
  • Suitable for use with PFC Corofil Coated Panel system

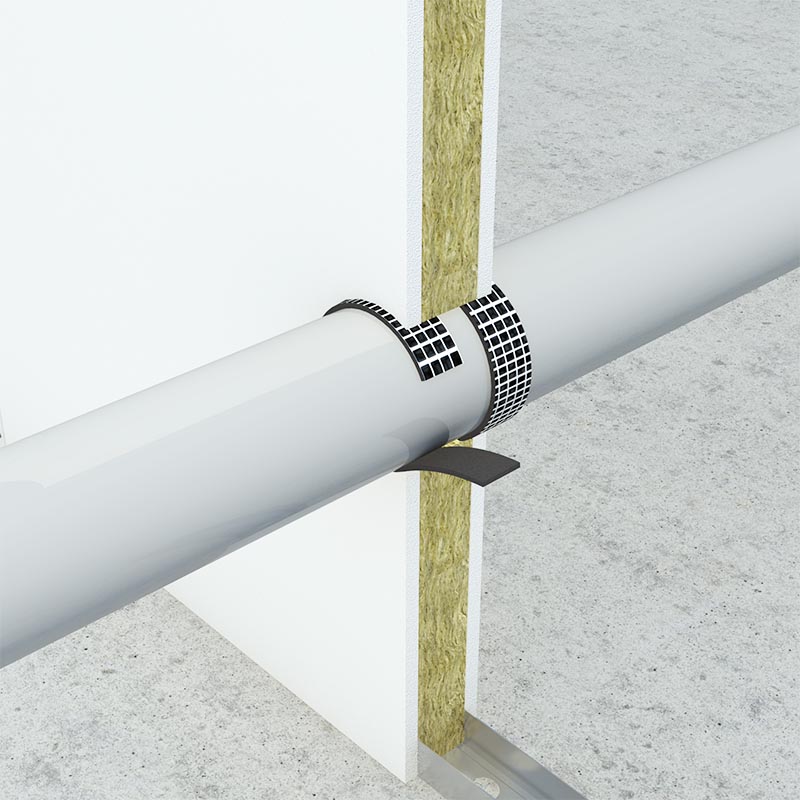

  • Suitable for use with plasterboard partitions
  • No mechanical fixings required
  • Third party certified

Please refer to manufacturer’s technical data sheet for details on fire performance.

Product code : 35PEIUFW
