The Isover U Protect system is certified to deliver up to two hours of passive fire protection for HVAC mechanical ventilation and smoke extract ducts. It has been tested in accordance with EN 1366-1 and EN 1366-8 and assessed against the criteria in EAD 350142-00-1106 under ETA 18/0691.

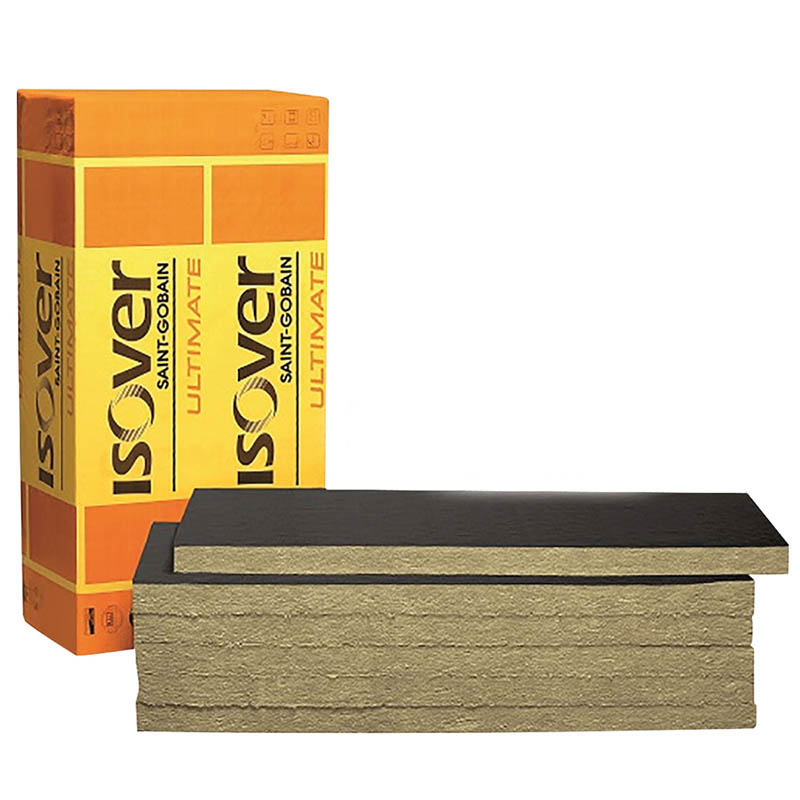

For rectangular ductwork, the Isover U Protect Slab 4.0 Alu1 is manufactured from Ultimate mineral wool and supplied in 1200 × 600 mm slabs. Ultimate mineral wool provides conventional thermal insulation and also achieves a Euroclass A1 fire classification. The fire resistance is dependent on the application, insulation thickness, and installation method.
Key Benefits
Fire Protection - The Isover U Protect system has been tested in accordance to EN 1366-1 and EN 1366-8 and assessed against the criteria in EAD 350142-00-1106 under ETA 18/0691. It offers up to two hours passive fire protection in HVAC ventilation and smoke extract ducts. 1
Easy to Install - The ULTIMATE™ slabs offer a lightweight solution compared to traditional stone wool options, ensuring ease of handling and installation, as well as reducing the stress on supporting structures. Their flexibility and mechanical strength allows fast and efficient cutting and fitting. The adhesive used in the system is only required at penetration details rather than at every insulation joint.
Fire Classification - Achieves a Euroclass A1 Reaction to Fire classification, according to EN 13501-1.
Thermal Performance - Offers energy savings through helping to control temperatures and reduce heat loss or gain within ductwork.
Product code : 04FUPSB100
Length : 1200mm
Width : 600mm
Thickness : 100mm
Weight : 5.2kg
Coverage : 2.90m² per pack
Material : Glass Mineral Wool
Unit Type : Pack
Unit Pack Quantity : 4
