Ecophone Connect Grid is generally made up of Connect Main Runner and Connect Cross Tees, which are roll-formed with a body of galvanized steel and capped with galvanized steel.
Every single component has a well-adjusted bearing capacity so that the system as a whole meets the most stringent demands.
The rigid Connect Main Runner has extra torsional strength and stability for a safe installation and excellent load bearing capacity. It has a unique narrow V-shaped spine which facilitates mounting of tiles etc. and allows quick installation of lay-in tiles, resulting in less damage. The design improves the performance and safety of the clips, hanger mountings, direct mountings etc.
Connect Cross tee has a patented, easy to use coupling. An audible click signals when the cross tee is in the correct position in the Connect Main Runner. The coupling contributes to a safe installation which is easy to demount. There is a long support lip in the coupling for quick fixing, which gives a firm, safe and non-twisted coupling.

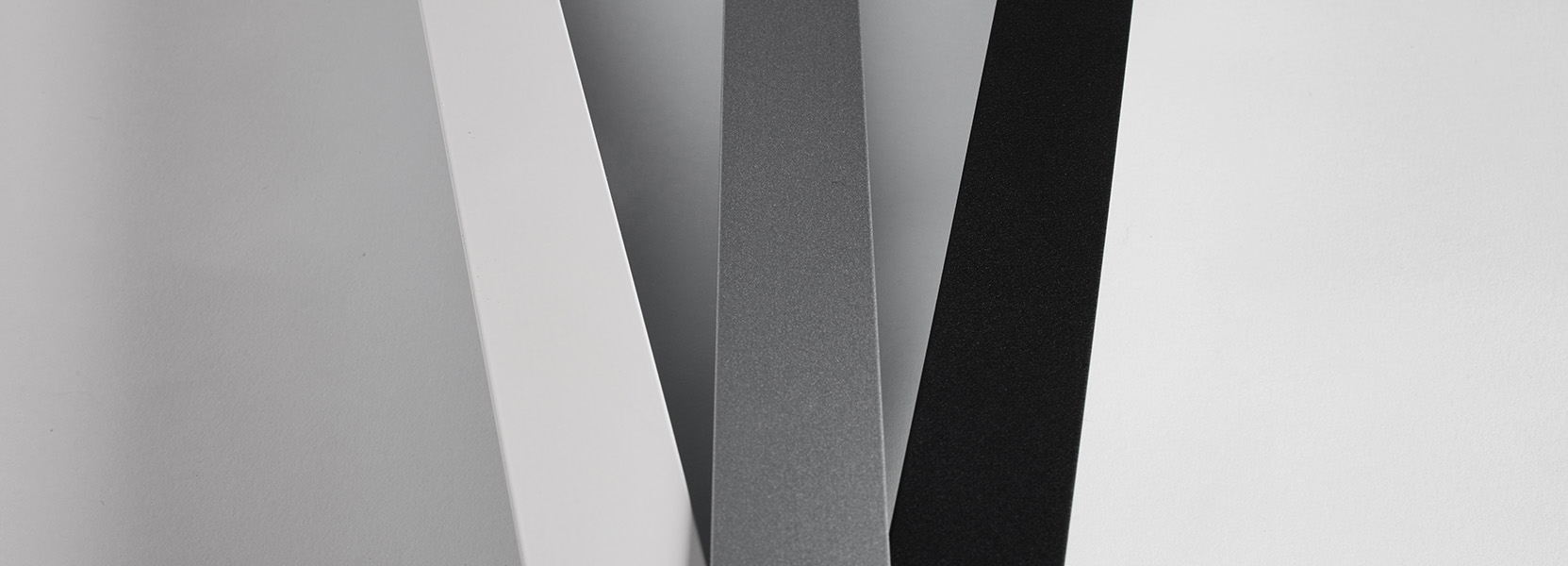

Connect™ grids are available in three different widths; T15 mm, T24 mm and T35 mm. You can choose between three standard colours; white, grey and black. Connect T24 C3 grid is manufactured from lacquered galvanized specially treated steel with a high corrosion resistance. Connect™ accessories and profiles are available in C3 class. Connect T24 C4 grid is manufactured from special treated galvanized steel, with a high corrosion resistance. The capping is painted in ultra matt white. Connect™ accessories and profiles are available in C4 class.
